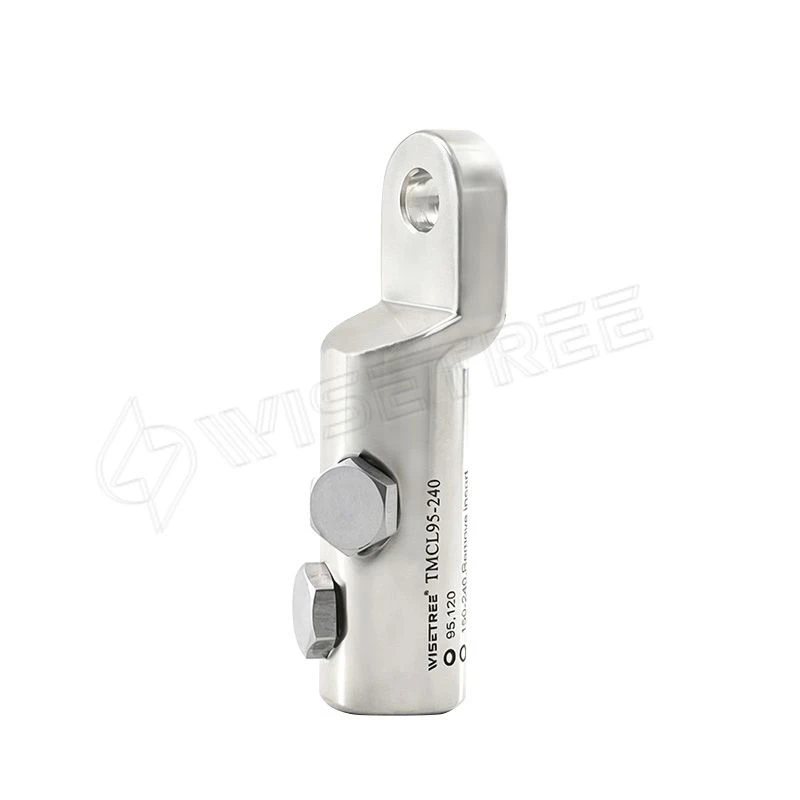

To choose the correct crimping die for cable lugs, match the die size, crimp profile, and tooling system to the conductor cross-sectional area, conductor material, and exact lug specifications. A die that is too large may produce an insufficient compression, while an unsuitable or undersized die can damage the lug or conductor. Before ordering cable connection products from WISETREE, confirm the cable size, lug model, and manufacturer's approved tooling requirements through the WISETREE terminals and connectors range.

Quick Summary

Match the die to the conductor size and the cable lug's specified crimping dimensions.

Check the die code against the connector manufacturer's tooling chart.

Confirm compatibility with copper or aluminum conductors and the required crimp profile.

Use the specified crimping tool, die, and installation sequence.

Inspect finished crimps and perform required verification tests; visual appearance alone cannot establish electrical or mechanical performance.

Why Does Crimping Die Selection Matter?

A crimping die applies controlled pressure to deform a cable lug barrel around the conductor. The goal is to create a reliable electrical and mechanical connection without damaging the conductor strands or the connector.

If the die is incompatible with the lug, the resulting connection may have excessive electrical resistance, insufficient pull-out strength, or localized areas of damage. These problems can contribute to overheating, intermittent faults, and premature connection failure.

The correct die is not necessarily the one that physically fits the crimping tool. It must be approved for the specific combination of tool, connector, conductor material, and conductor size.

What Factors Determine the Correct Crimping Die?

1. Match the Cable Cross-Sectional Area

Start by identifying the conductor size, usually specified in square millimeters (mm²) or American Wire Gauge (AWG). Then check the cable lug's rated conductor size.

For example, a lug designed for a 50 mm² conductor should not automatically be crimped with a die labeled for a nominally similar AWG size. Metric and AWG sizes do not always correspond exactly, and different connector systems may specify different die dimensions.

Before selecting a die, confirm:

The conductor's actual nominal cross-sectional area.

Whether the conductor is solid, stranded, or fine-stranded.

The lug's rated conductor range.

The approved die size and crimping sequence.

Whether the connector is designed for the particular conductor construction.

Do not select a die based only on the outside diameter of the insulated cable. The relevant size is the conductor and the connector system's specified crimping requirements.

2. Check the Die Code and Manufacturer's Chart

Many compression lugs and dies carry identification codes. Depending on the manufacturer, these markings may indicate the required die size, connector family, compression dimensions, or tooling system.

However, die codes are not universal. A code used by one manufacturer may not identify the same die size or crimping specification in another product range.

The safest procedure is to:

Read the markings on the cable lug and die.

Identify the lug manufacturer and exact product series.

Consult the manufacturer's crimping chart or installation instructions.

Confirm the approved tool and die combination.

Verify the number and position of crimps required.

If the lug has no visible die marking, use its product documentation rather than guessing from the barrel dimensions.

3. Identify the Conductor and Lug Material

Copper and aluminum conductors have different material properties and may require different connector designs, surface preparation, and crimping procedures.

For aluminum connections, follow the connector manufacturer's requirements for surface preparation and any specified oxide-inhibiting compound. Do not assume that a die intended for a copper lug is suitable for an aluminum connector of a similar nominal size.

4. Choose the Correct Crimp Profile

Different connectors use different crimp geometries. The appropriate profile depends on the connector design and the manufacturer's qualified installation system.

Hexagonal crimping is widely used for power cable lugs, but it is not automatically suitable for every connector. Similarly, an indent die should only be used where the connector's design and instructions permit it.

Do not substitute one crimp profile for another solely because both tools can compress the barrel.

5. Verify Tool and Die Compatibility

A correct die can still produce a poor crimp if it is used with an unsuitable tool. Hydraulic, battery-powered, and manual crimping tools may have different operating ranges, die interfaces, and force characteristics.

Before crimping, verify that:

The die fits the tool and is approved for its model.

The tool can provide the required crimping force.

The die is undamaged and correctly installed.

The tool's maintenance and calibration requirements have been met, where applicable.

The complete tooling combination is approved for the selected connector.

Whenever possible, use the connector manufacturer's specified tooling system. If alternative tooling is proposed, obtain confirmation that the combination is acceptable for the intended application.

How Can You Tell Whether a Crimp Is Correct?

A visual inspection can identify obvious defects, but it cannot independently prove that a crimp meets its electrical and mechanical requirements.

Visual Inspection Checklist

After crimping, inspect the connection for:

Correct die identification marks, where required by the manufacturer.

Correct crimp location and number of crimps.

No obvious cracking, splitting, or severe deformation of the barrel.

No excessive extrusion or sharp material projections.

No visibly cut, broken, or displaced conductor strands.

Correct conductor insertion and no unintended damage to the insulation.

The acceptable appearance depends on the lug and crimp profile. For example, some designs intentionally produce particular surface impressions, so generic visual rules should not replace the manufacturer's acceptance criteria.

Signs of Over-Crimping

Over-crimping may occur when the die, tool, or crimping procedure is unsuitable. Possible warning signs include barrel cracking, excessive deformation, damaged strands, or material extrusion beyond the design's accepted limits.

A die that is too small may be one cause, but these symptoms do not establish the cause on their own. Incorrect tool operation or a mismatch between the connector and conductor can also contribute.

Signs of Under-Crimping

An under-crimped connection may have insufficient compression or poor conductor retention. Potential warning signs include an incomplete crimp impression, an improperly formed barrel, or failure to meet specified pull-out or electrical test criteria.

Do not rely on the shape of the crimp alone. Some defects are internal and may not be visible after installation.

What Tests Verify Crimp Quality?

The appropriate verification method depends on the connector type, application, project specification, and applicable standards.

For critical power connections, follow the manufacturer's instructions and the applicable project or industry requirements. Do not invent a universal pull-out force or resistance limit: the acceptance value must come from the correct specification for the connector and application.

How Should Buyers Specify Crimping Dies When Ordering Cable Lugs?

Buyers sourcing cable lugs and associated tooling should provide enough information for the supplier to identify a compatible connection system.

Use this checklist when requesting a quotation:

Providing the tool model and lug markings is particularly useful when replacing an existing die or qualifying an alternative supplier. It reduces the risk of ordering a die that fits the tool but is not approved for the connector.

For project-specific requirements, consult the WISETREE terminals and connectors range and provide the technical details needed to confirm product suitability.

Frequently Asked Questions

Can I use the same crimping die for different cable lug brands?

Not automatically. Different brands may use different die codes, barrel dimensions, and crimping requirements. Use the specified tooling combination or obtain confirmation that an alternative is approved for the exact connector.

Is a larger crimping die always safer than a smaller one?

No. A die that is too large may not provide sufficient compression, while an undersized die may cause excessive deformation or damage. The correct die is the one specified for the lug, conductor, and tool system.

Can I select a crimping die by measuring the lug barrel?

Barrel measurements can help identify a connector, but they are not sufficient to determine the correct die in every case. Consult the product markings and manufacturer documentation to confirm the approved die size and profile.

Does a good-looking crimp guarantee a reliable connection?

No. Visual inspection can detect obvious defects, but some electrical or mechanical problems are not visible. Follow the required inspection and testing procedures for the specific application.

Should copper and aluminum cable lugs use the same die?

Only if the connector manufacturer explicitly approves that tooling combination. Copper and aluminum connections can have different connector designs and crimping requirements, so material compatibility must be verified.

Contact WISETREE for Cable Lug Selection Support

Choosing the correct crimping die helps ensure that cable lugs are installed consistently and can perform as intended. The key is to match the conductor size, material, connector design, crimp profile, and tooling system rather than relying on a die code or physical fit alone.
