Aluminum Cable Lugs Manufacturer for Power Cable Termination

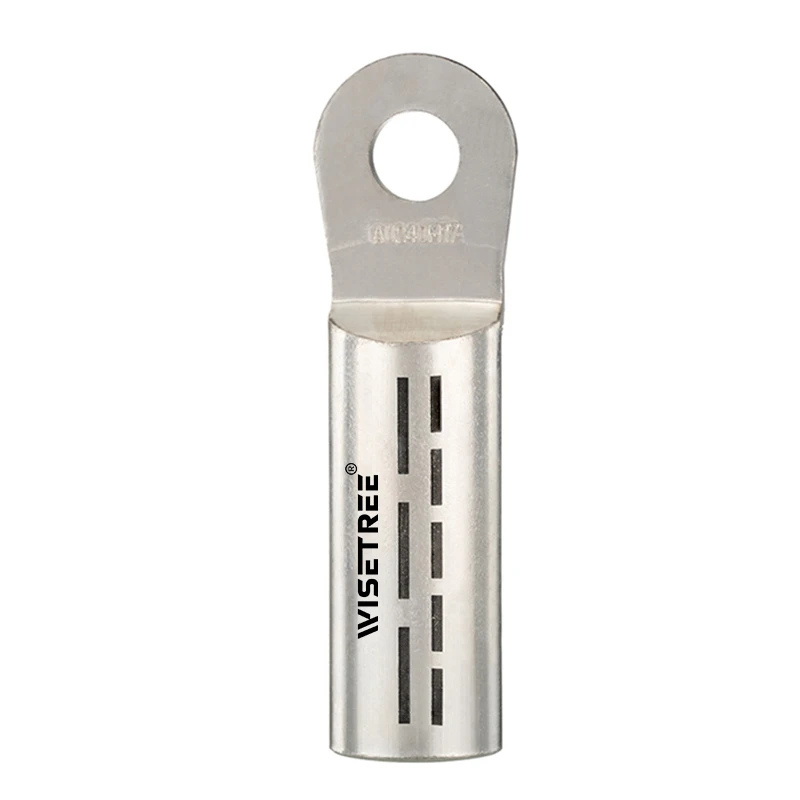

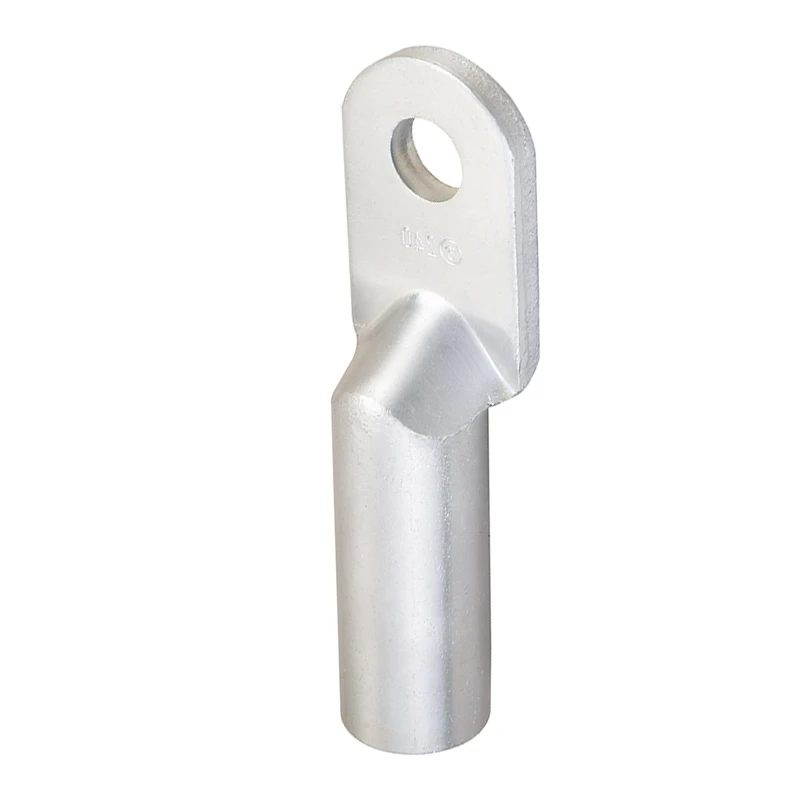

WISETREE supplies aluminum cable lugs for terminating aluminum conductors in power distribution, switchgear, transformers, industrial electrical equipment and infrastructure projects. Available product series include TCL-S, AU, DL, DLA and other configurations for different conductor sizes, mounting dimensions and termination requirements.

Select the appropriate aluminum cable lug according to conductor size, conductor construction, equipment-side connection material, stud hole, palm dimensions and installation requirements.

If your aluminum conductor needs to connect to a copper terminal or copper busbar, review our Bimetallic Cable Lugs before selecting a standard aluminum lug.

For other conductor materials and termination methods, browse the complete Cable Lugs range.

Aluminum Cable Lugs for Different Termination Requirements

Different cable and equipment combinations require different aluminum lug dimensions and connection structures.

WISETREE offers multiple aluminum cable lug series for electrical termination applications.

• Aluminum conductor size

• Conductor construction

• Equipment-side connection material

• Stud or mounting hole size

• Palm dimensions

• Overall installation space

• Required product series or project specification

Aluminum or Bimetallic Cable Lug?

The material on the equipment side is one of the most important factors when selecting a lug for an aluminum conductor.

If the conductor is aluminum but the equipment-side connection is copper, check whether a Bimetallic Cable Lug is required for the application.

Aluminum Cable Lug Selection Guide

Use this table for initial selection. Confirm the final product against the dimensional and technical information of the specific model.

Key Specifications for Aluminum Cable Lug Selection

Use the following parameters when comparing models or preparing a quotation request.

If you already have an equipment drawing or existing lug sample, send it together with the cable information for faster dimensional matching.

Custom Aluminum Cable Lugs

Standard catalogue dimensions do not fit every switchgear, transformer, distribution panel or equipment terminal.

WISETREE can review custom aluminum cable lug requirements according to manufacturing feasibility.

Custom requirements may include:

• Conductor size or range

• Barrel inner diameter

• Barrel outer diameter

• Barrel length

• Palm width

• Palm thickness

• Stud hole diameter

• Overall length

• Connection configuration

• Surface requirement

• Product marking

• Packaging

For custom product evaluation, send:

• Cable specification

• Equipment connection dimensions

• Technical drawing or sample

• Application

• Estimated quantity

If no formal drawing is available, provide clear dimensions or a reference sample for initial review.

Typical Applications

Aluminum cable lugs are used for aluminum conductor termination in electrical and power systems such as:

• Switchgear

• Transformers

• Distribution panels

• Power distribution equipment

• Utility infrastructure

• Renewable energy systems

• Industrial electrical equipment

• Infrastructure power projects

For aluminum conductor-to-conductor jointing, browse Aluminum Cable Connectors.

For aluminum-to-copper transition termination, see Bimetallic Cable Lugs.

For grounding and lightning protection products, visit Lightning Protection & Earthing.

Samples and Procurement Support

Sample Evaluation

Samples can be used to confirm:

• Conductor fit

• Stud hole compatibility

• Equipment-side dimensions

• Replacement suitability

• Custom dimensions

Standard catalogue samples may be available without a sample charge, while specially customized samples may involve additional cost depending on the requirement.

Project and Bulk Orders

For projects involving several conductor sizes, send the cable schedule together with the required quantities.

This makes it easier to review multiple product sizes at the same time and reduces repeated specification confirmation during purchasing.

For more information about our company and product supply capabilities, visit About WISETREE.

Frequently Asked Questions

How do I choose the correct aluminum cable lug size?

Start with the aluminum conductor cross-section and conductor construction. Then confirm the barrel dimensions, stud hole, palm dimensions and equipment-side connection material. Final selection should match both the conductor and the equipment terminal.

Can an aluminum cable lug connect directly to a copper busbar?

Do not assume that a standard aluminum lug is suitable for an aluminum-to-copper connection. Where an aluminum conductor terminates onto a copper busbar or terminal, check whether a suitable Bimetallic Cable Lug is required.

When should I use a bimetallic cable lug instead?

Use a suitable bimetallic product when the application requires a transition between an aluminum conductor and a compatible copper connection point. Confirm both the cable size and copper-side mounting dimensions before selection.

Does conductor construction affect aluminum cable lug selection?

Yes. Solid, stranded, compacted and sector-shaped aluminum conductors can have different physical dimensions even at the same nominal cross-section. Provide the conductor construction when requesting product matching.

How do I select the correct stud hole size?

Match the lug mounting hole to the stud or bolt on the electrical equipment. For replacement products, confirm the existing terminal stud diameter before ordering.

Do aluminum conductors require special preparation before crimping?

Preparation requirements depend on the conductor, lug series and installation specification. Follow the applicable cable preparation and crimping requirements for the selected product. If your project specifies cleaning, connection compound or another treatment, include that requirement in your inquiry.

What information should I provide for aluminum cable lug selection?

Provide the conductor material, cable size, conductor construction, equipment-side material, stud hole, required standard and quantity. Send a drawing for non-standard mounting dimensions.

Can aluminum cable lug dimensions be customized?

Project-specific dimensions can be reviewed according to manufacturing feasibility. Send the cable specification, required barrel and palm dimensions, mounting hole, drawing and estimated quantity for evaluation.

Send Your Aluminum Cable Lug Specification

If you already know the required model, send the product series, cable size and quantity for quotation.

If you are still selecting a product, provide your conductor size, conductor construction, equipment-side material, stud size and quantity. For special dimensions, attach an equipment drawing, lug drawing or reference sample.

Contact WISETREE to request aluminum cable lug specifications, samples or a quotation.
